src.visuals.windows.spaces.templater module

the wrapper class for a single instance of plot spaces

class src.visuals.windows.spaces.templater.NeoDiagrams(ids, parent=None)

Bases: QWidget

a class wrapper for the Diagrams tile, where an sql query or template file produces a figure

Parameters:

ids (str)

id

this attribute is used internally to uniquely map a picture, to his corresponding widget

Type:

str

ui

the class produced by compiling the corresponding ui file.

Type:

Ui_NeoDiagrams

_execute_plot()

executes plotting via the plugin module according to the given data

_init_windows()

initializes all widgets in this class with a specific state.

Here all widgets are disabled, since the user has to choose one of the provided methods of plotting in the first place.

_show_dropdown()

if the sql method is used, this method will spawn entries in the combobox, which are exactly the plugins, which apply on the given sql query.

_update_states()

updates the state of all widgets according to checkboxstates

staticMetaObject = PySide6.QtCore.QMetaObject("NeoDiagrams" inherits "QWidget": )

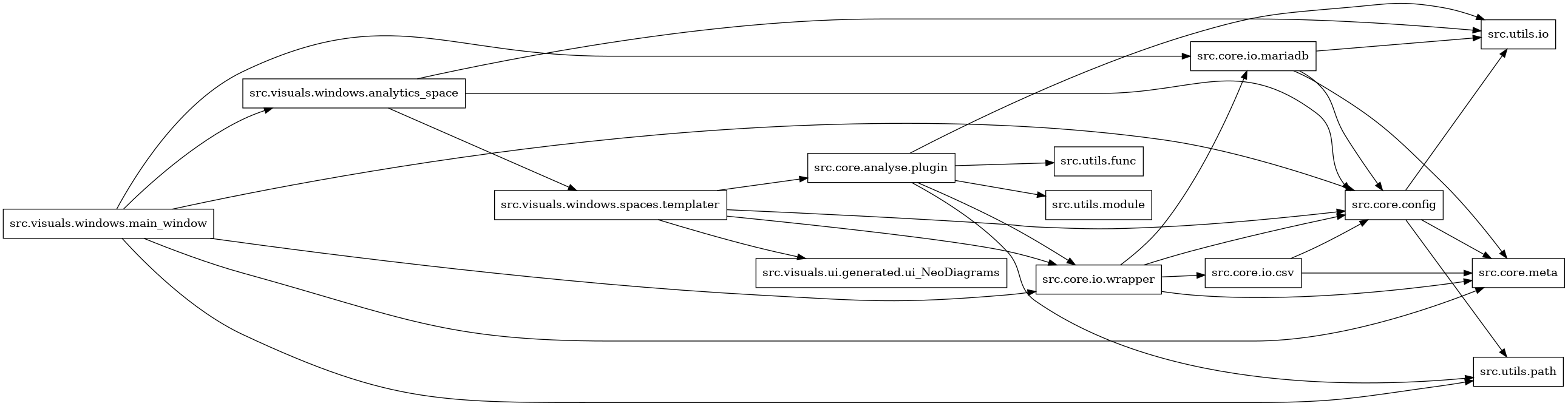

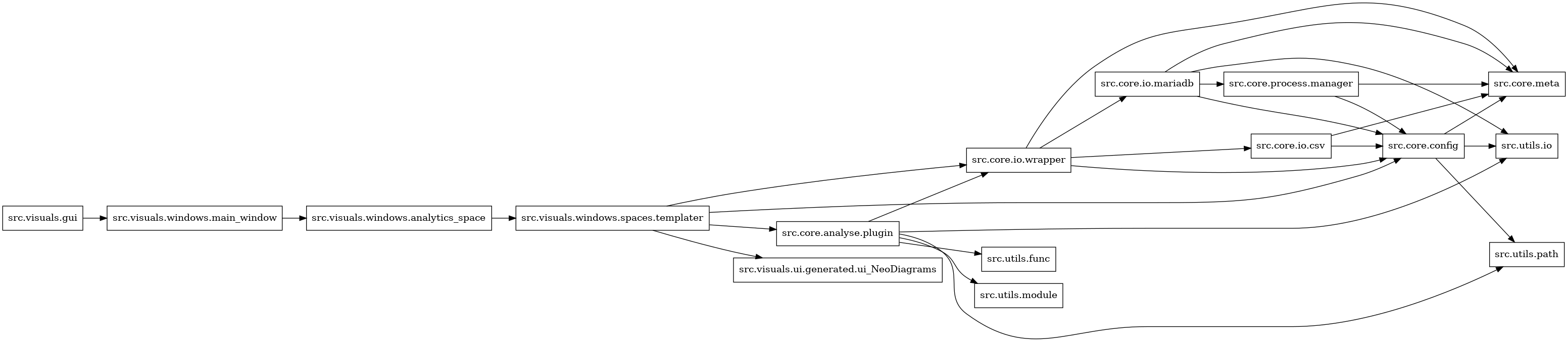

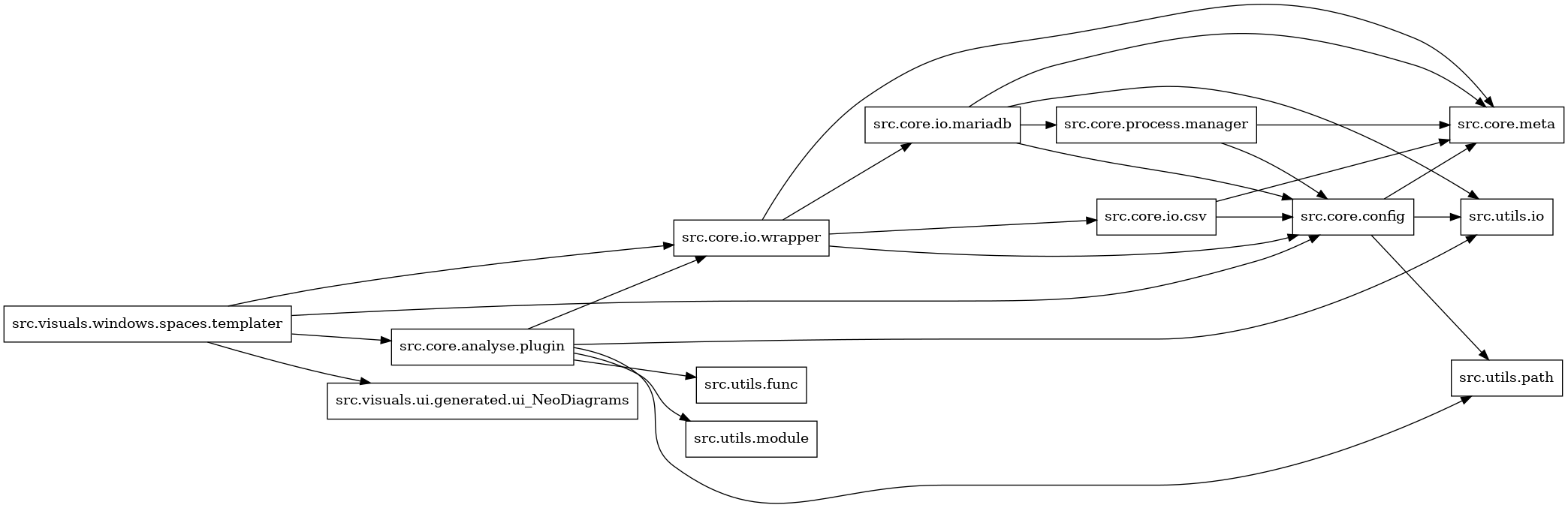

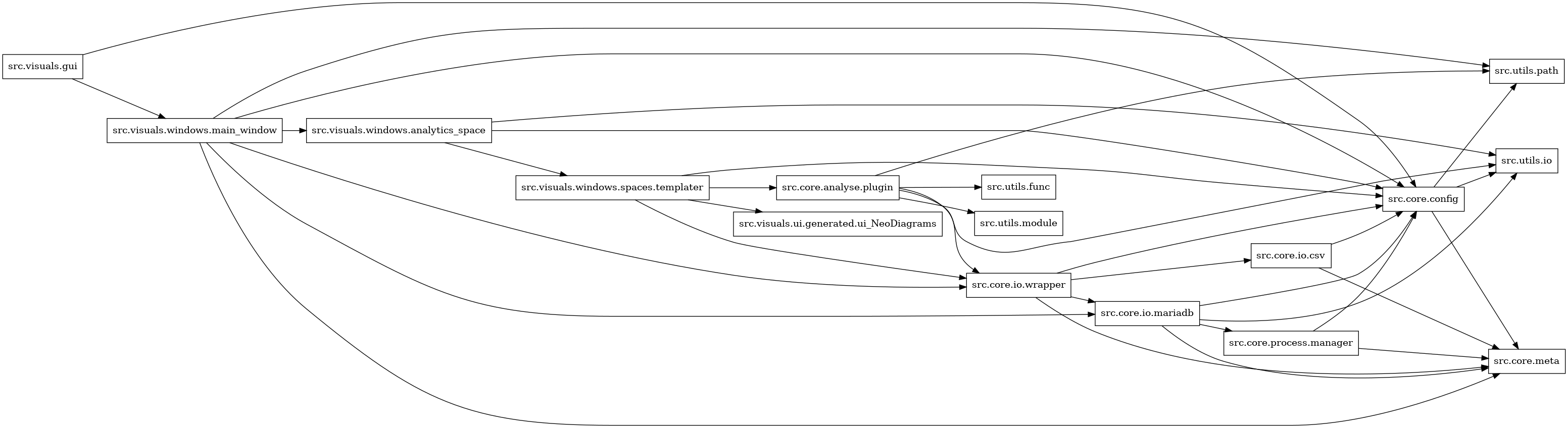

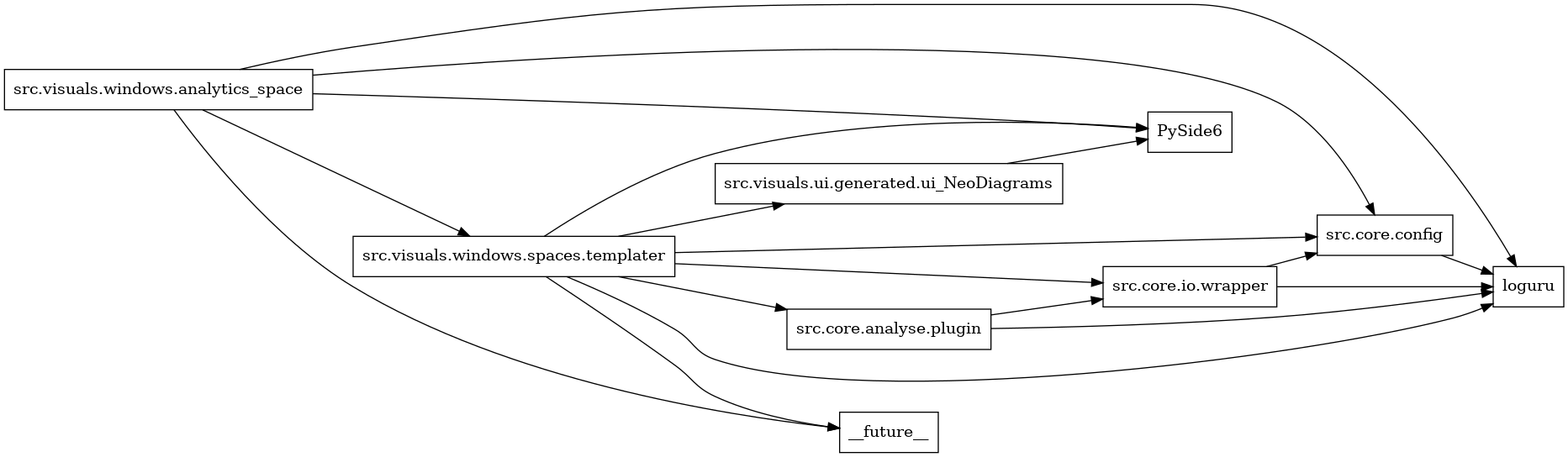

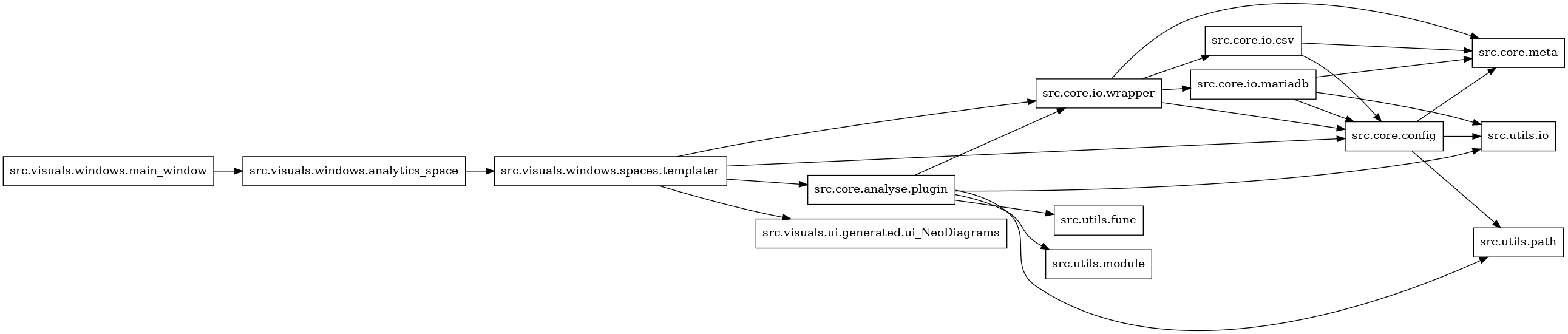

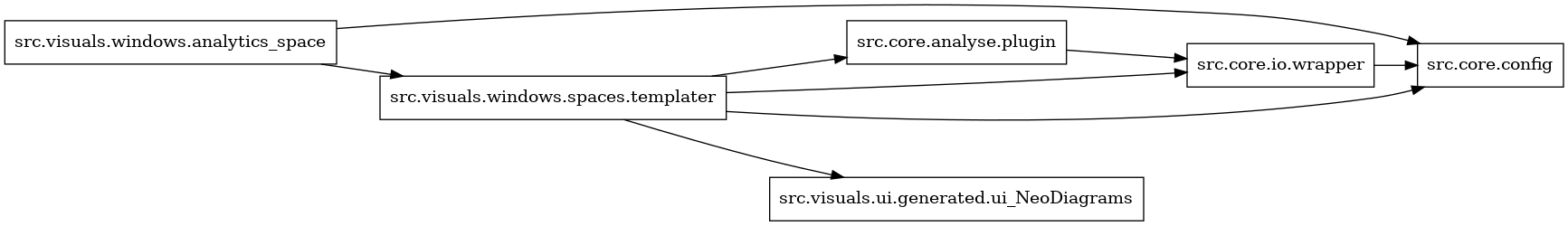

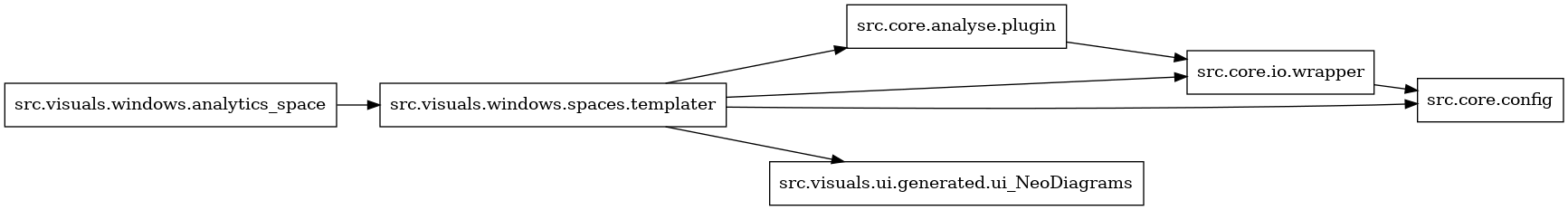

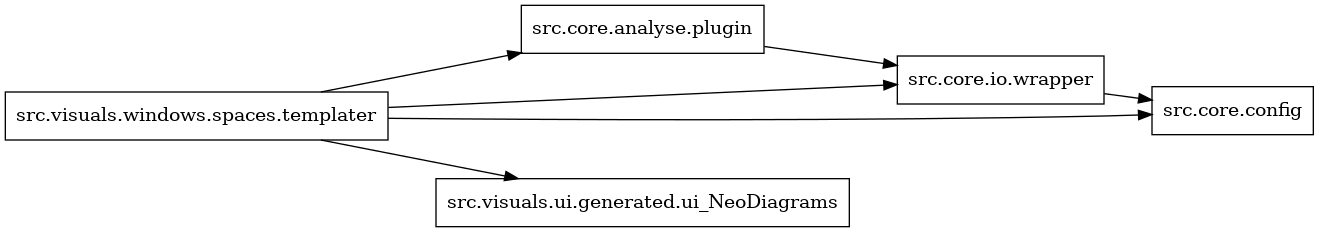

Dependency Diagrams (without externals):

Mode: exportMode: importMode: neighborMode: neighbor_reduced

Range 1Range 2Range 3Range 4Range 5

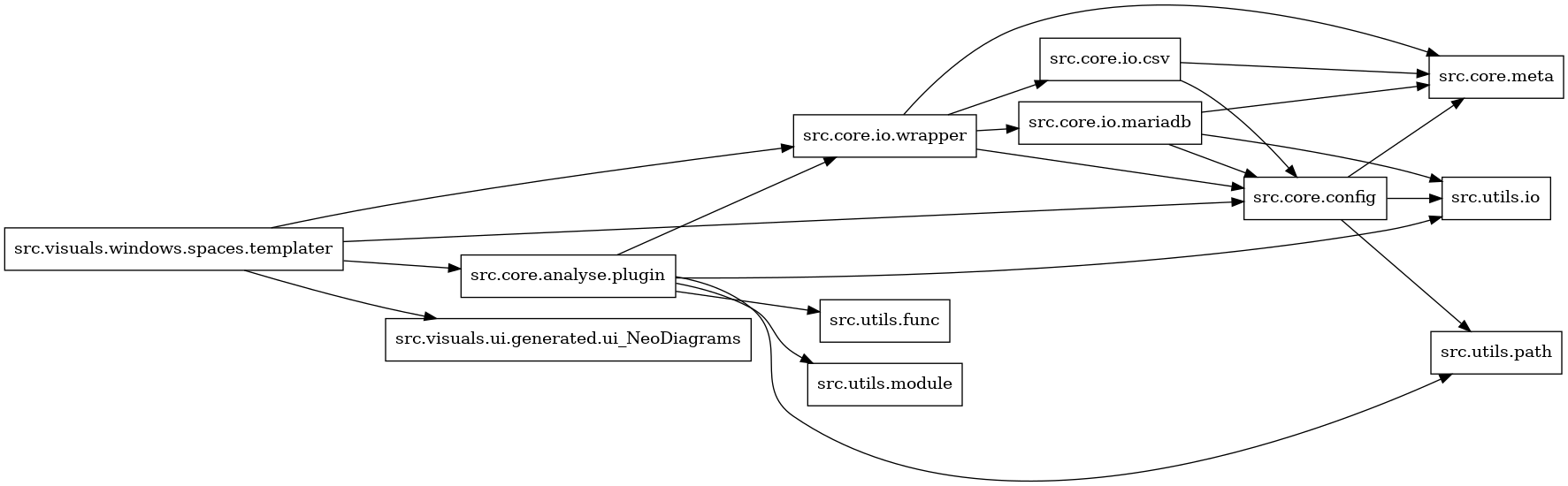

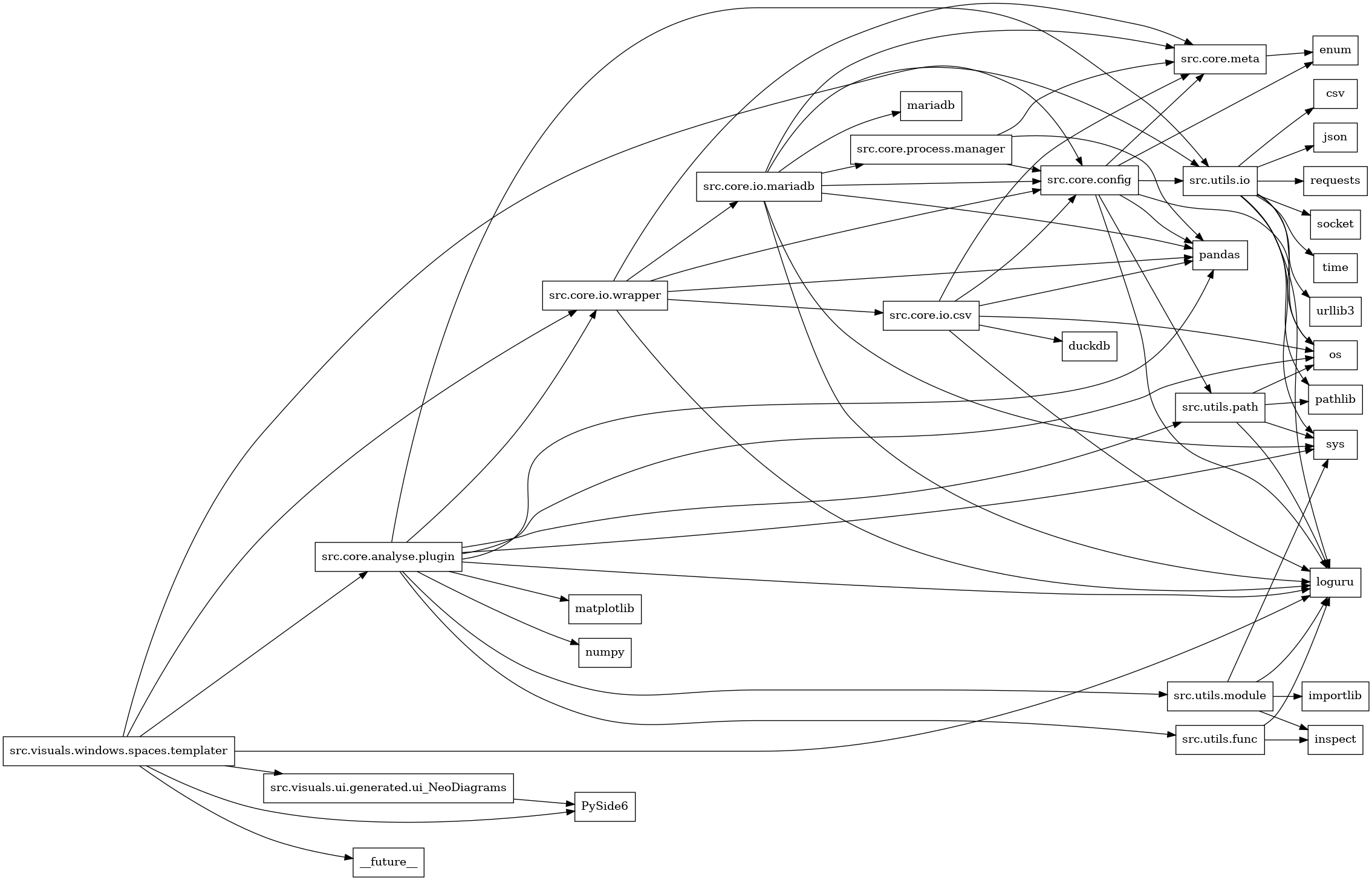

Import dependencies (collapsed)

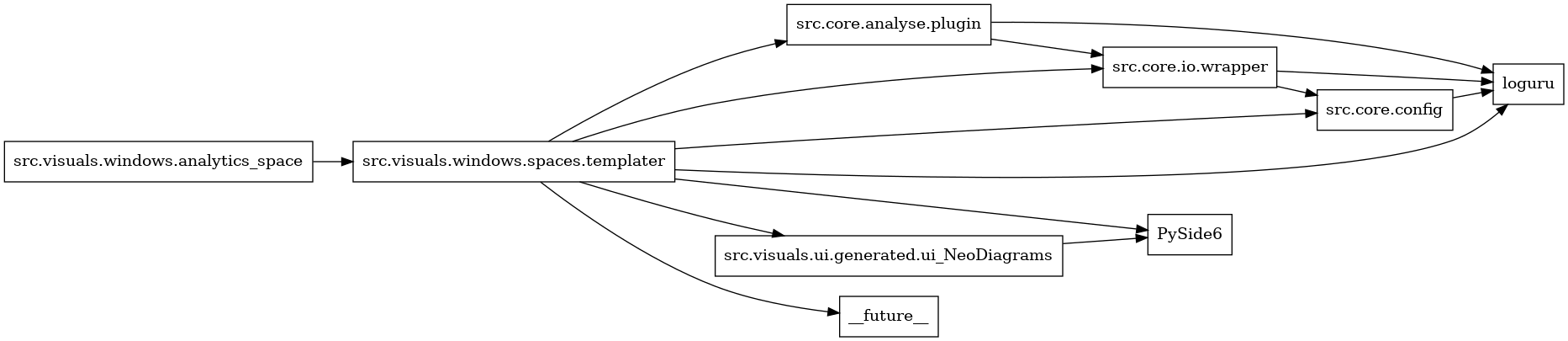

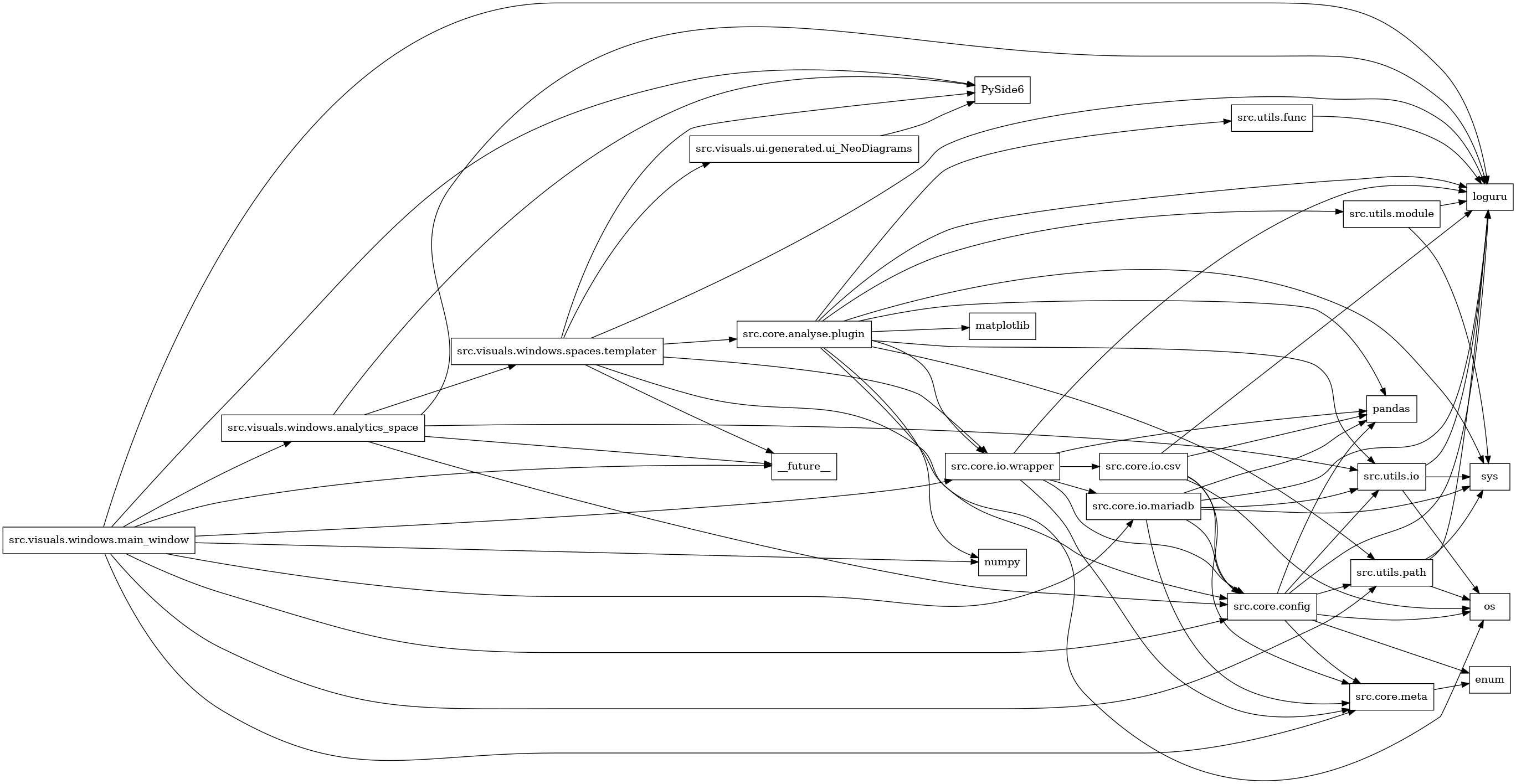

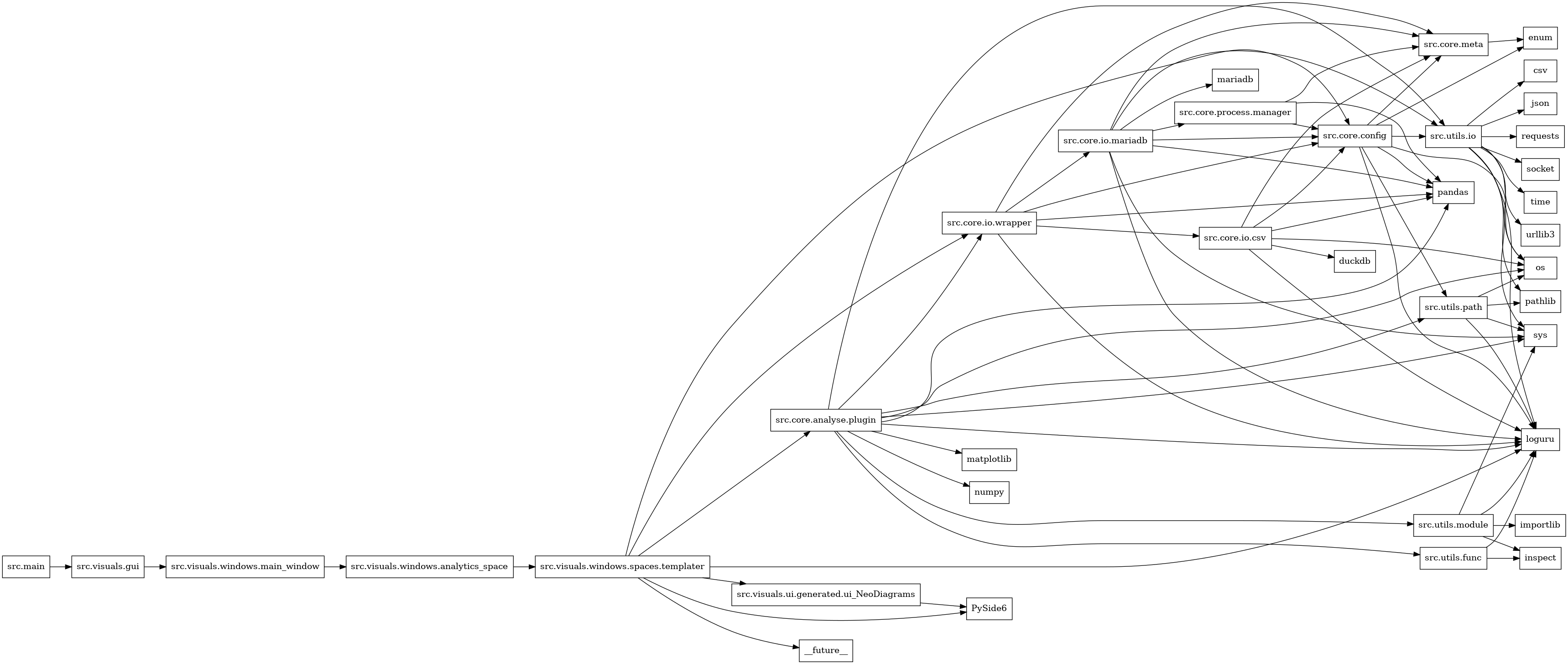

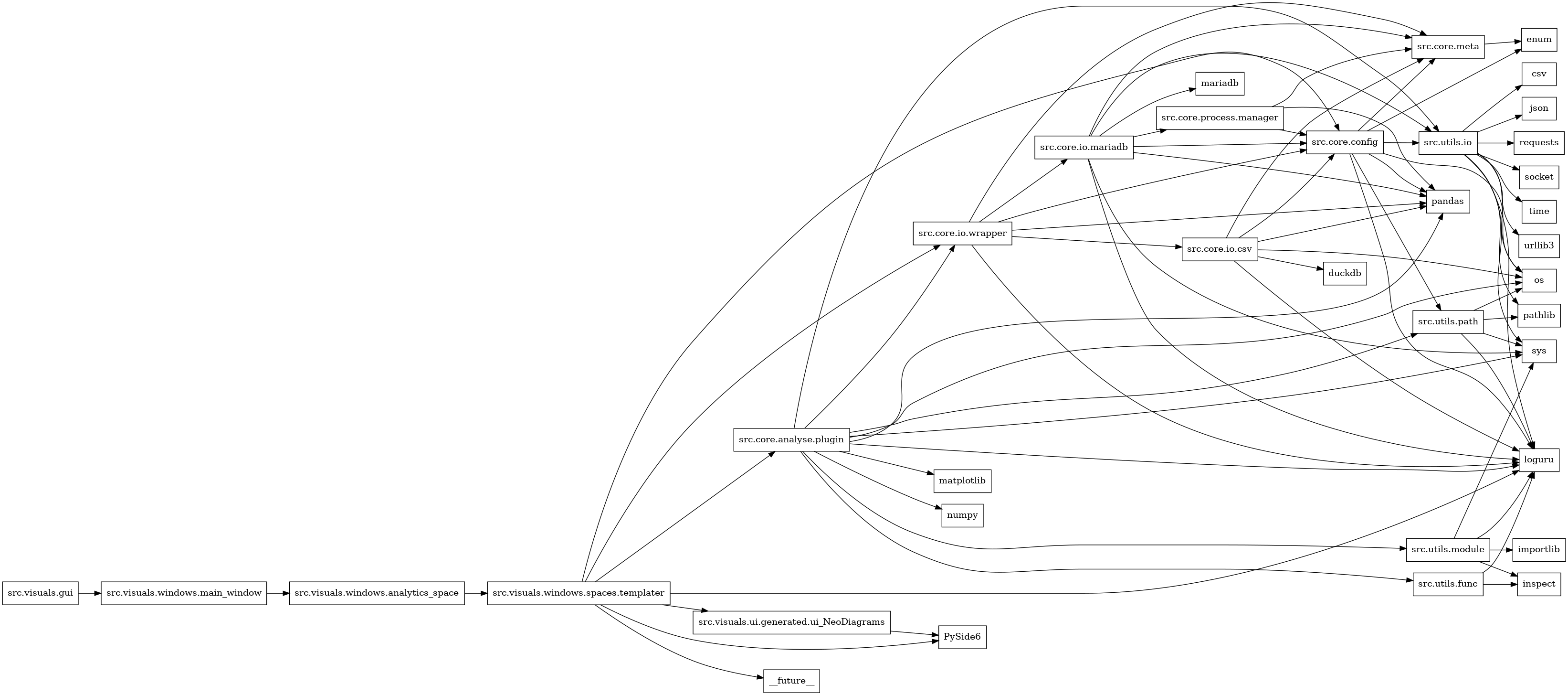

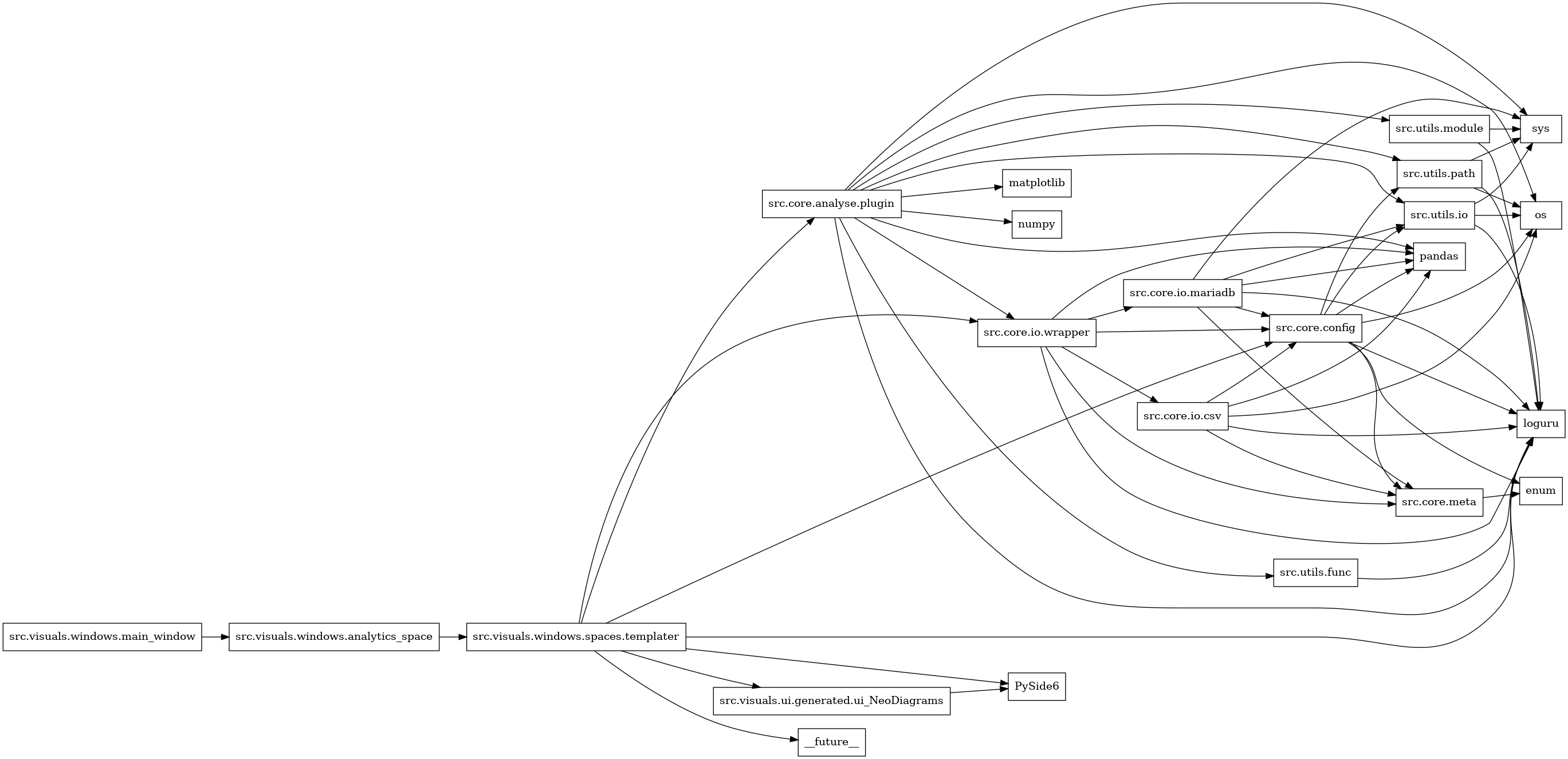

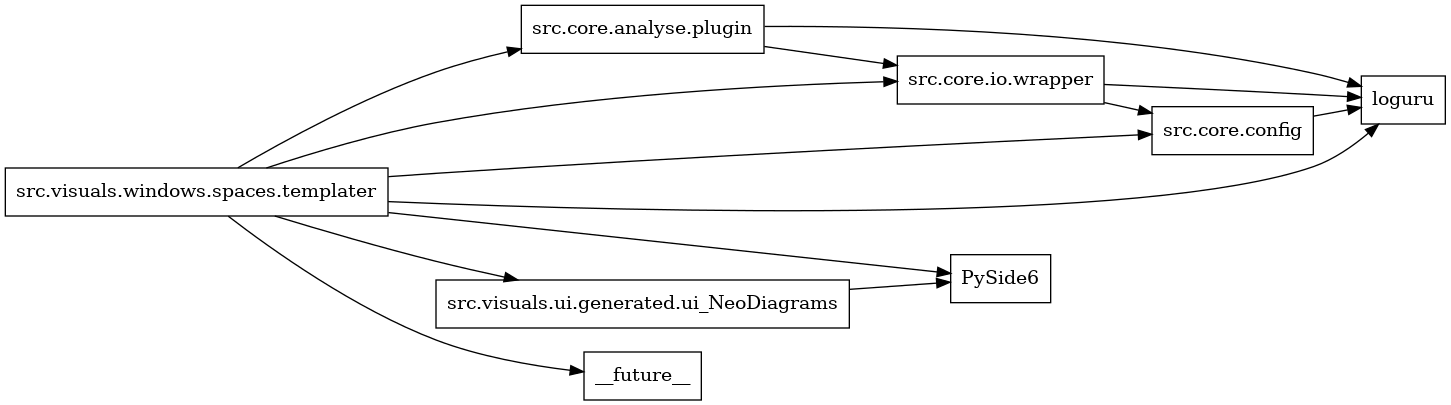

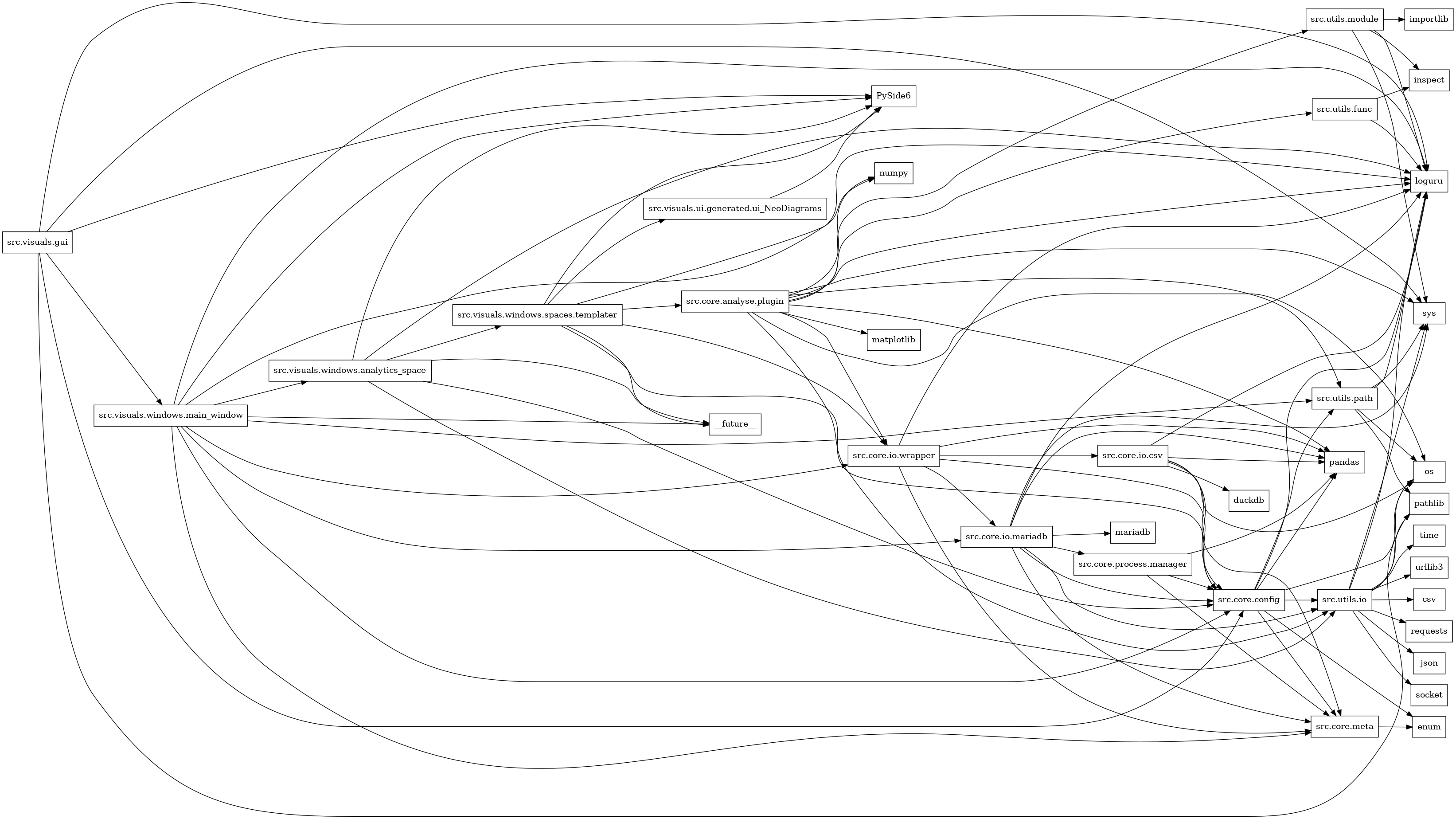

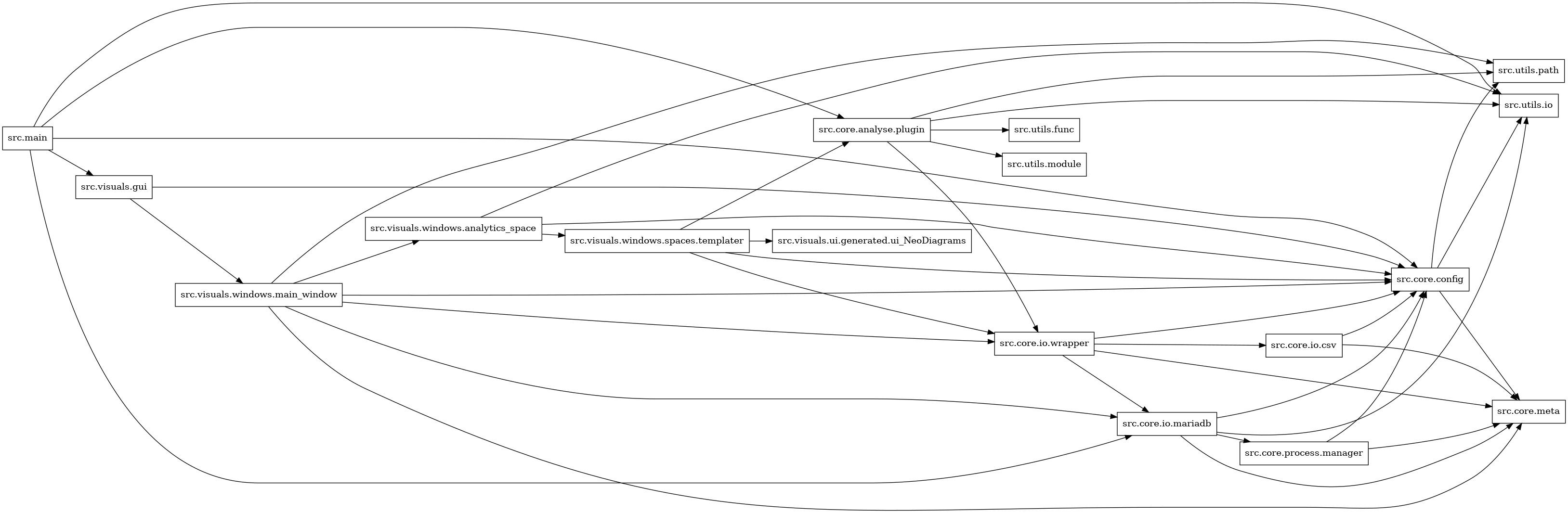

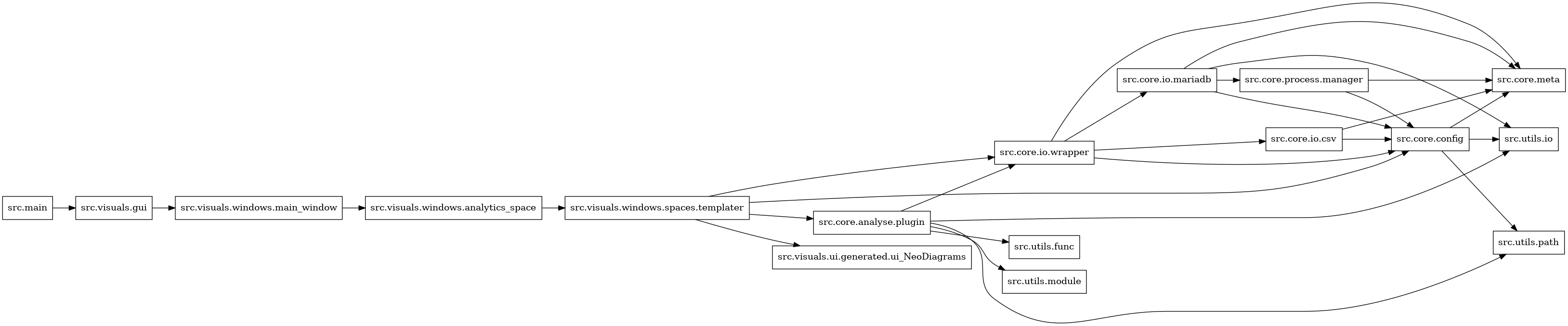

Dependency Diagrams:

Mode: exportMode: importMode: neighborMode: neighbor_reduced

Range 1Range 2Range 3Range 4Range 5

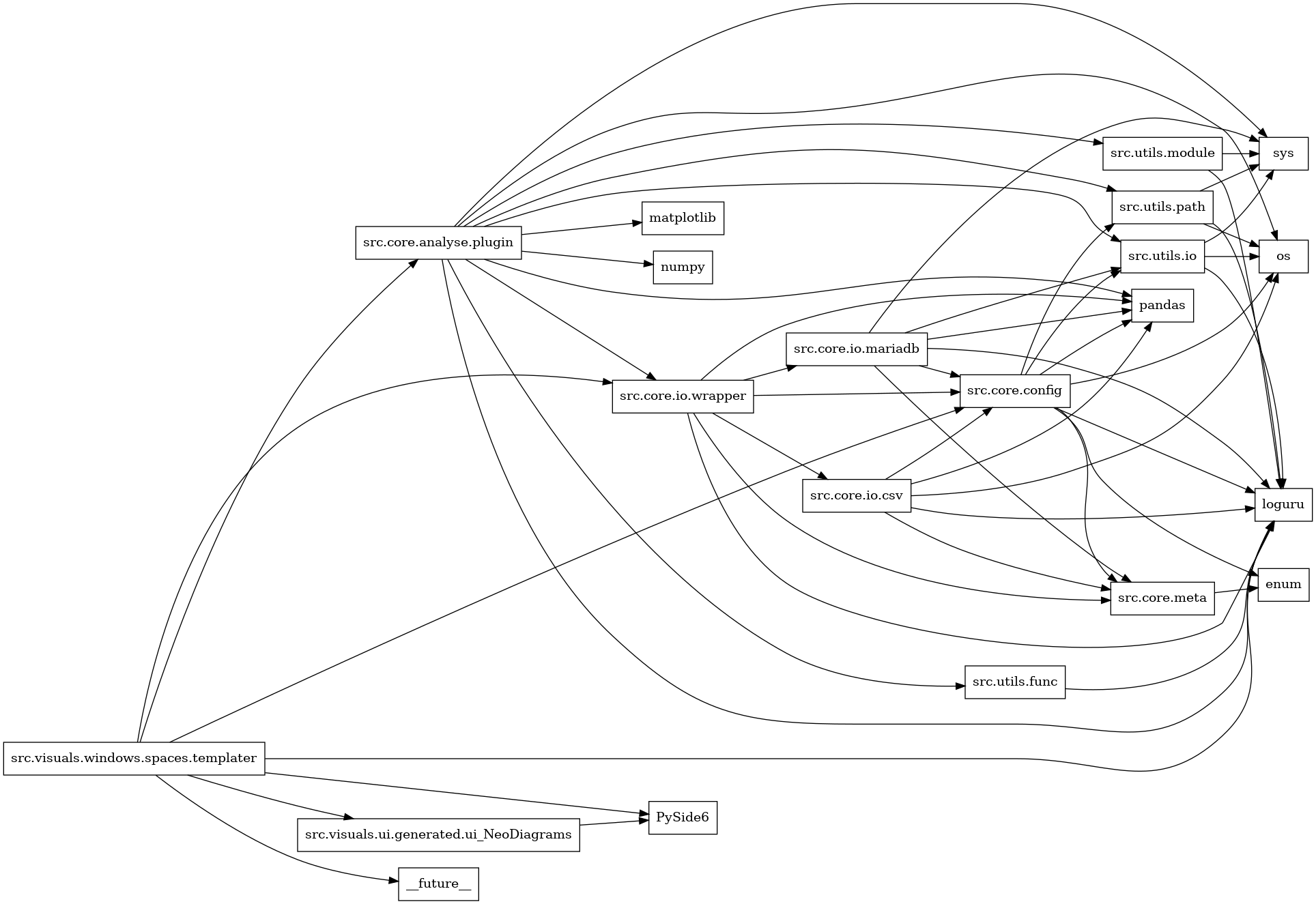

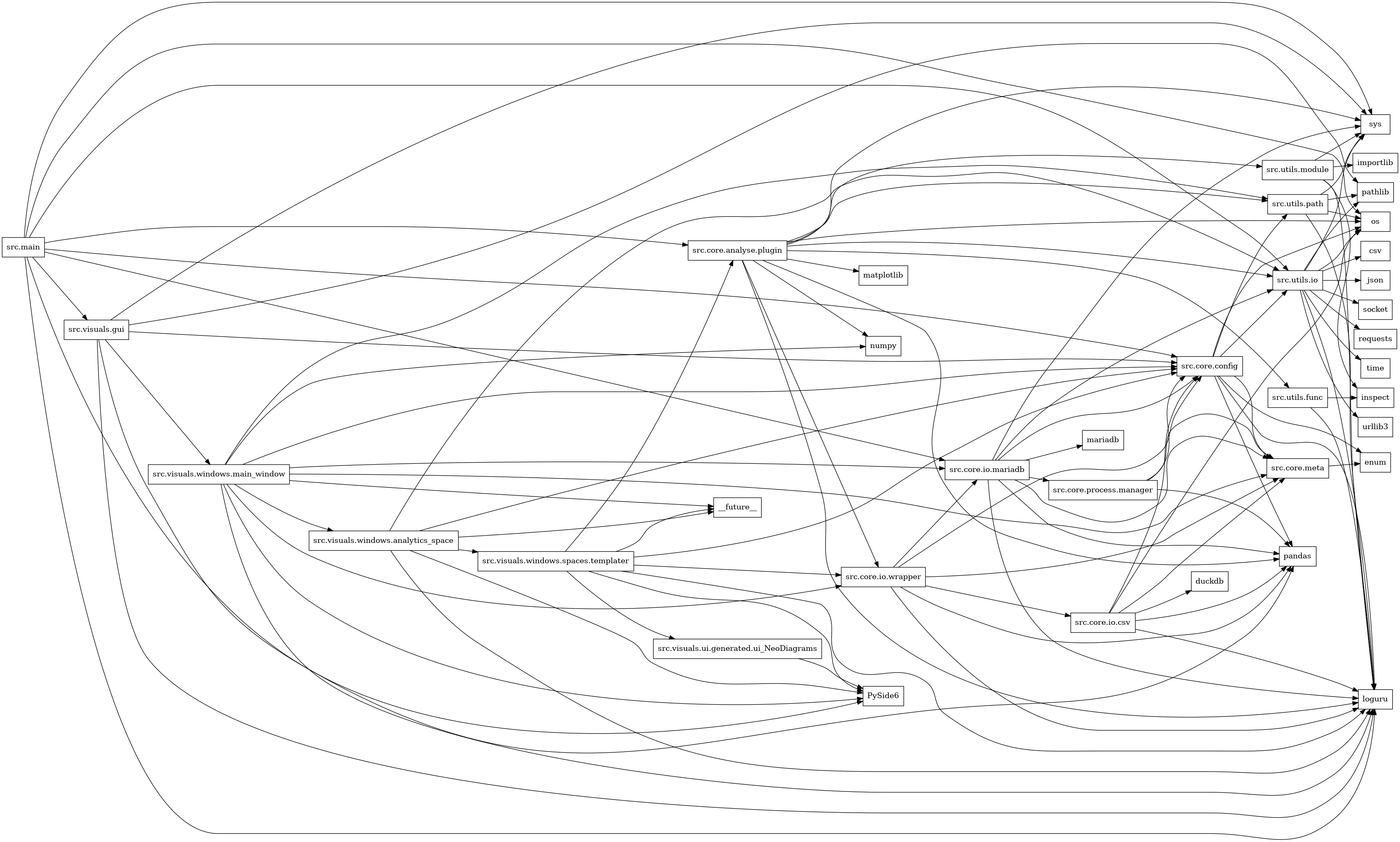

Import dependencies (collapsed)
